LZG Helix Vibration Dryer

Key word:Helix Vibration Dryer,Vibration Dryer, Helix Dryer
Classification:Fluidized drying series
Product overview:The damp raw material enters into helix bed from feed inlet at the top and moves along with the helix bed under the function of excited force and gravity material make jumping motion from up to low until discharged at the bottom layer…
Product Details Photo gallery Video highlights

WORKING PRICIPLE

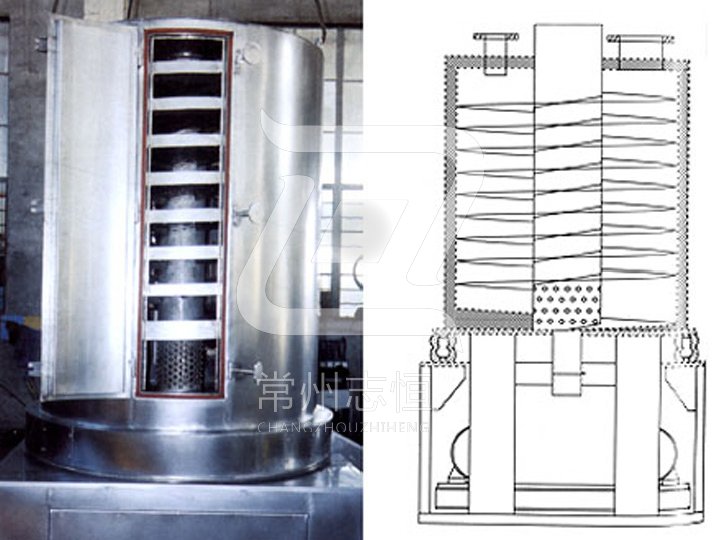

The damp raw material enters into helix bed from feeding inlet at the top and moves along with the helix bed under the action of excited force and gravity. The material is jumping up and down until it falls to the bottom layer. The clean hot air enters into it from the bottom of helix bed and carries out heat exchange with raw material and exhausted from the outlet at the top.

APPLICATION
This dryer is widely used for drying Chinese medicine pills. It is also suitable for drying granule, strip and ball shape material for chemical industry, pharmaceutical industry, foodstuff industry, construction material industry, feed industry, and etc.

FEATURES

1. The hot air passes through the raw material layer time by time and it acts reverse motion towards to the raw material so the heat exchanges is fully used and thermal efficiency is high;
2. The structure is compact which required small occupied area;
3. The staying time of raw material in helix bed is adjustable and the operation is easy and convenient;
4. The raw material is moving up and down in the helix bed and it also jumping by itself, so the contact surface with the hot air is increased and the drying effects is strengthened;
5. This dryer is suitable for continuous production line and it can also meet the requirement of GMP;

6. The dryer will not damage the surface and shape of the raw material so it maintains the roundness of the medicine pill and also decrease the broken rate of medicine pill.


TECHNICAL PARAMETERS

Type LZG-1.0 LZG-1.2 LZG-1.4 LZG-1.6 LZG-1.8
Diameter (mm) 1000 1200 1400 1600 1800
Power (kw) 2×1.1 2×1.1 2×1.5 2×1.5 2×2.2
Overall size (m) 1.2×1.2×2.7 1.4×1.4×2.7 1.6×1.6×3.3 1.8×1.8×3.3 2.0×2.0×3.3
Weight (kg) 1400 1680 2800 3100 3800
Inlet air temperature (°C) 60-200 60-200 60-200 60-200 60-200
Amount of air(m3/h) 1487 2380 3721 4462 5930
