30B High-Effective Universal Grinder
Key word：Universal Grinder
Classification：Crushing equipment
Product overview：The machine (set) is extensively used in pharmaceutical, chemical, food and pesticide industries for pulverizing dry brittle materials .
Product Details
Photo gallery
Video highlights
APPLICATION
The machine (set) is widely used for the fragile materials in pharmaceutical, chemical, foodstuff, and pesticide industries.
WORKING PRINCIPLE
This machine utilizes the high-speed relative motion between movable and fixed fluted disc to crush the raw material to be crushed and creates friction force. The crushed raw material can be discharged through grinding chamber. Moreover, different size of raw material can be got through exchanging screen with different mesh. This machine is in conformity with the requirements of GMP and it is made of stainless steel. No dust emissions during production process.
Technical Parameter
| Spec | Unit | 20B/ 20B Set | 30B/ 30B Set | 40B/ 40B Set | 60B/ 60B Set |
| Productive capacity | kg/h | 60-150 | 100-300 | 160-800 | 500-1500 |
| Speed of main shaft | r/min | 4500 | 3800 | 3400 | 2800 |
| Feeding granule size | mm | 6 | 10 | 12 | 15 |
| Finesee of pulverization | mesh | 60-150 | 60-120 | 60-120 | 60-120 |
| Grinding motor power | kw | 4 | 5.5 | 11 | 15 |
| Fan power | kw | 1.5 | 1.5 | 1.5 | 2.2 |
| Weight | kg | 250 | 320 | 550 | 680 |
| Overall dimension (L×W×H) | mm | 550×600×1250 | 600×700×1450 | 800×900×1550 | 1000×900×1680 |
| Overall dimension (set) (L×W×H) | mm | 1100×600×1650 | 1200×650×1650 | 1350×700×1700 | 1550×1000×1750 |
-
30B High-Effective Universal Grinder -

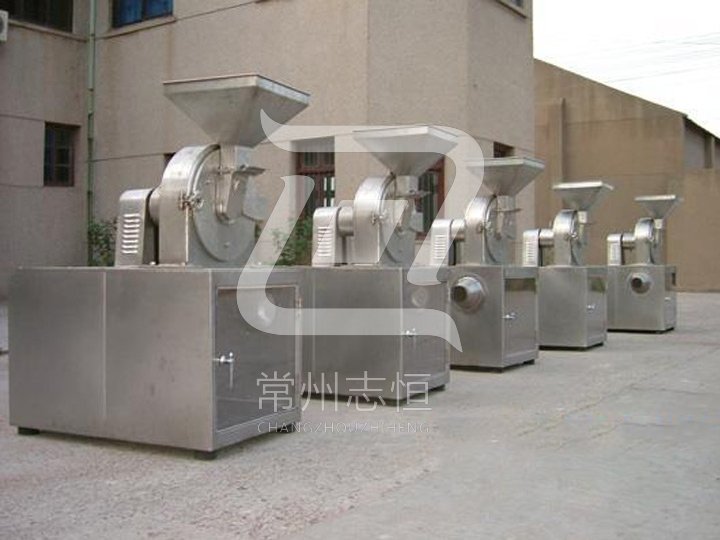

30B High-Effective Universal Grinder
