WFJ Micro Grinder
Key word：Micro Grinder
Classification：Crushing equipment
Product overview：The equipment consists of main machine, assistant machine and control cabinet.The process of produce is continuous.The machine is extensively used in pharmaceutical, chemical, food industries for pulverizing dry brittle materials .
Product Details
Photo gallery
Video highlights
APPLICATION

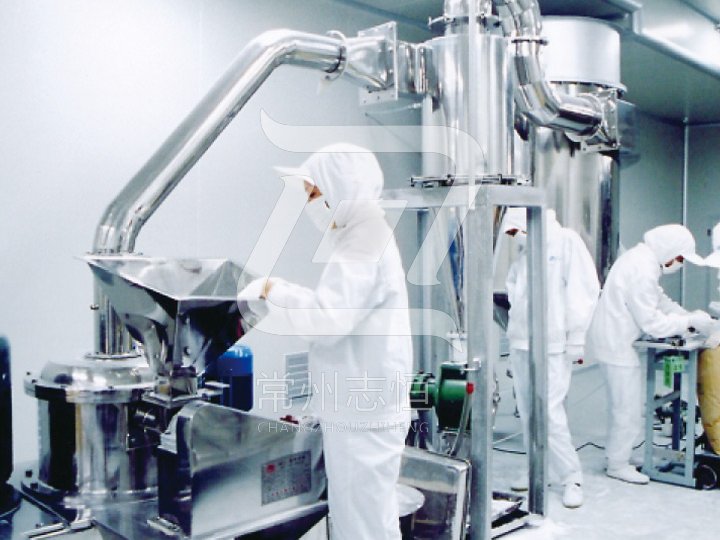

The grinder consists of main machine, assistant machine, and control cabinet. The process of produce is continuous. The machine is widely used for the fragile materials in pharmaceutical, chemical, and food industries.
Technical Parameter
| Spec | Unit | WFJ-15 | WFJ-18 | WFJ-32 |
| Production capacity | kg/h | 10-200 | 20-450 | 60-800 |
| Inlet material diamenter | mm | ＜10 | ＜10 | ＜15 |
| Oulet material diamenter | mesh | 80-320 | 80-450 | 80-450 |
| Power | kw | 13.5 | 17.5 | 46 |
| Main rotaing speed | r/min | 3800-6000 | 3800-6000 | 3800-4000 |
| Overall dimension(L×W×H) | mm | 4200×1200×2700 | 4700×1200×2900 | 9000×1500×3800 |
| Weight | kg | 850 | 980 | 1500 |
-
WFJ Micro Grinder -
WFJ Micro Grinder
No related videos...
No relevant case...
