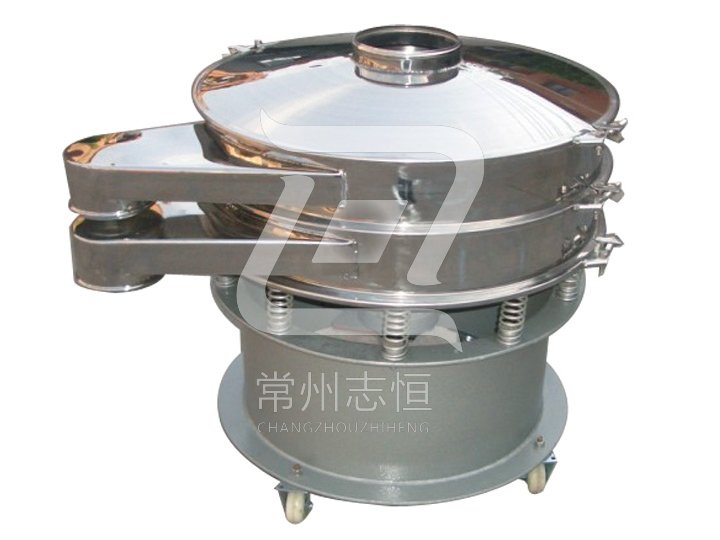

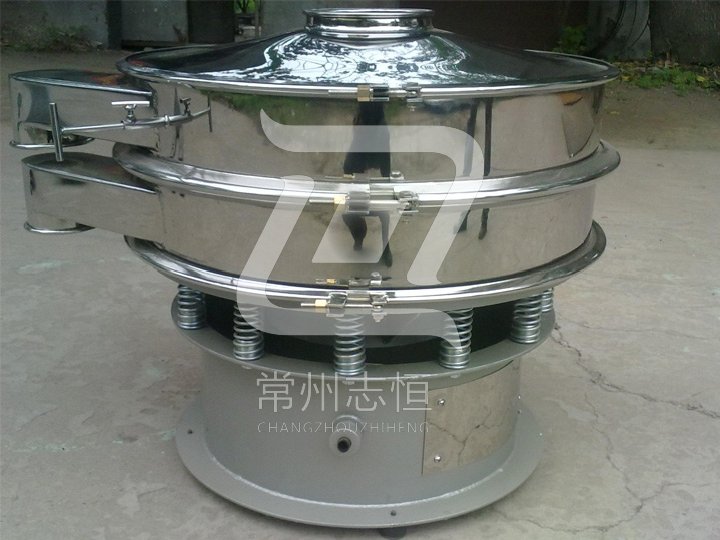

ZS Circular Vibrating Sieve
Key word：Circular Vibrating Sieve,Vibrating Sieve
Classification：Screening equipment
Product overview：The machine consist of hopper , vibrating chamber , couple and motor . There are eccentric wheel,rubber software, main shaft and shaft-bearing in the vibration chamber .The adjustable eccentric hammer is driven to…
Product Details
Photo gallery
Video highlights
Description
This machine consists of hopper, vibrating chamber, couple and motor. There are eccentric wheel, rubber parts, main shaft, and shaft-bearing in the vibration chamber .The adjustable eccentric hammer is driven to the center line through the motor and generates centrifugal force under the unbalance condition to change the material strength and form an orbit vortex. The amplitude of the hammer can be adjusted according to the properties of material and the mesh screen. It is designed with compact structure, dust free, noise-free, high output capacity, low energy consumption, and easy to maintenance.
Technical Parameter
| Spec | ZS-350 | ZS-515 | ZS-650 | ZS-800 | ZS-1000 | ZS-1500 |
| Capacity (kg/h) | 40-500 | 60-600 | 80-800 | 150-1200 | 300-2000 | 350-2800 |
| Meshes | 12-1200 | 12-200 | 12-200 | 12-200 | 5-325 | 5-325 |
| Power (kw) | 0.55 | 0.55 | 0.55 | 0.75 | 1.5 | 2.2 |
| Speed (rpm) | 1380 | 1370 | 1370 | 1500 | 1500 | 1500 |
| Overall dimension (mm) | 540×540×1060 | 710×710×1290 | 880×880×1350 | 1000×1000×1000 | 1100×1100×1200 | 1600×1600×1200 |
| Weight (kg) | 100 | 180 | 250 | 300 | 350 | 400 |
-
ZS Circular Vibrating Sieve -
ZS Circular Vibrating Sieve
No related videos...
No relevant case...
Previous：No
Related articles
- 2018-10-06 > Analysis on the Application of Eight Drying Equipments in Chemical Pharmaceutical Industry
- 2018-06-15 > Application of spray drying desulfurization technology in protecting ecological environment
- 2018-04-16 > Comparison of powder extraction rate between traditional Chinese medicine extract and high speed spray dryer
- 2018-02-22 > Development status and characteristics of high efficiency mixing granulator for calcium carbonate industry
- 2017-11-04 > Belt dryers are common faults and maintenance during use
- 2017-09-21 > Application range and selection of belt dryer
- 2017-06-30 > Safe use of hot air circulation oven and four points of attention
- 2017-04-06 > The rice dryer market will also see new trends
- 2017-02-01 > Four major process design methods for rotary flash dryer
Related Products
-

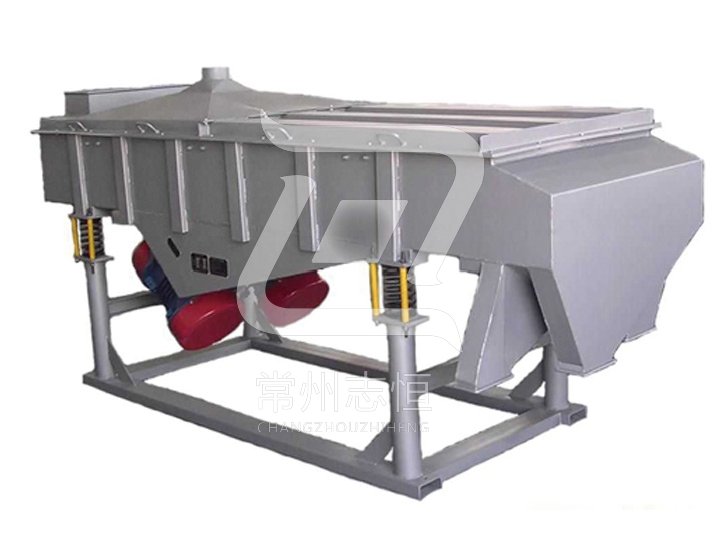

FS Square Vibrating Sieve -
