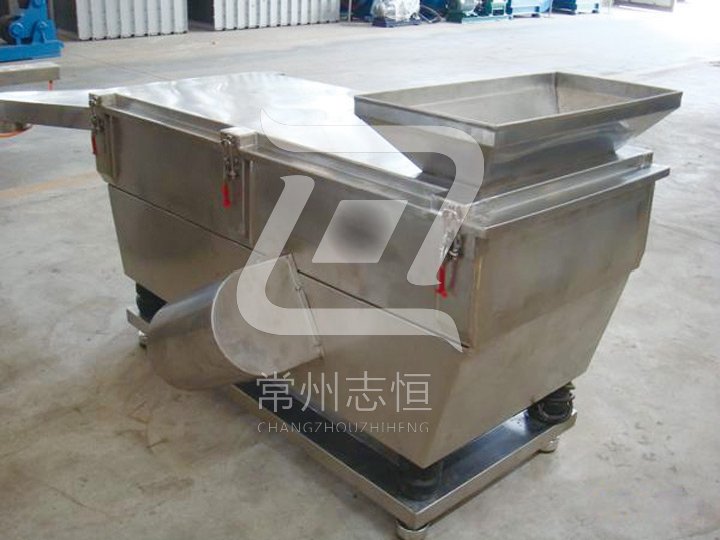

FS Square Vibrating Sieve
Key word：Square Vibrating Sieve,Vibrating Sieve
Classification：Screening equipment
Product overview：The machine consists of screen box at material inlet and outlet, vibrator and shock absorber .There are 4-6 sets of exible rubber shock absorber connected between base and screen box in up-down order. Centrifugal force is generated…
Product Details
Photo gallery
Video highlights
DESCRIPTION
This machine consists of screen box at material inlet and outlet, vibrator and shock absorber. There are 4-6 sets of flexible rubber shock absorber connected between base and screen box in up-down order. Centrifugal force is generated upon starting of the machine. Control shock absorber against amplitude eccentric device correspondingly for best performance and material screening process in throwing vibration and loose. It is the ideal choice for pharmaceutical, food, chemical, metallurgy and electronic industries.
Technical Parameter
| Spec |
Capacity (kg/h) |
Meshes (mesh) |
Power (kw/h) |
Vibration frequency (r/min) |
Vibration power (kN) |
The height of upper exit | The height of mid exit | The height of low exit |
Overall dimension (L×W×H) |
Weight (kg) |
| FS-0.5M2-X | 450 | 2-150 | 0.2×2 | 1400 | 0-2.5×2 | 800 | 680 | 500 |
1300×770 ×1060 |
220 |
| FS-0.7M2-X | 650 | 2-150 | 0.2×2 | 1400 | 0-2.5×2 | 850 | 750 | 530 |
1700×680 ×1100 |
280 |
| FS-0.8M2-X | 750 | 2-150 | 0.2×2 | 1400 | 0-2.5×2 | 850 | 750 | 530 |
1600×830 ×1150 |
320 |
| FS-1.2M2-X | 1100 | 2-150 | 0.2×2 | 960 | 0-5×2 | 880 | 760 | 520 |
1900×980 ×1220 |
450 |
-
