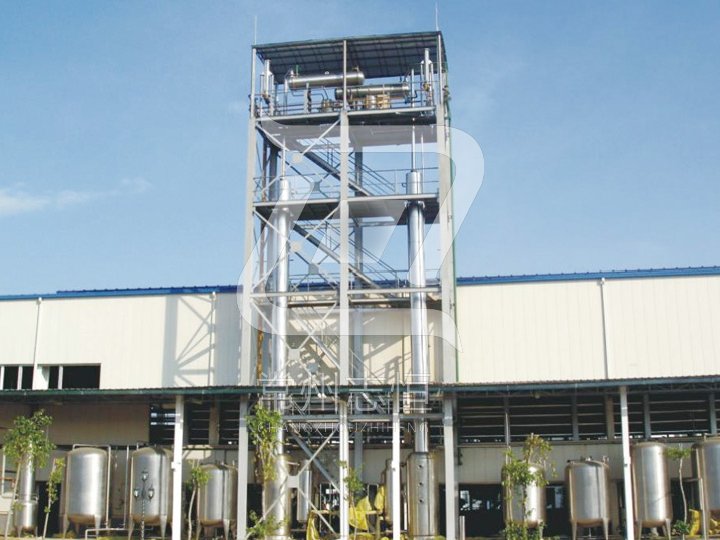

ERT Alcohol Recovery Tower
STRUCTURAL CHARACTERISTICS AND TECHNICAL PERFORMANCE
The device adapts high ef fect ceramics wave filler. The body of distillation tower is made of stainless steel. In this way it can prevent from the phenomenon of filler block caused by scrap iron and it's life is prolonged. All parts that will contact ethanol in the device such as condensor, buffer tank, cooling snake pipe are made of stainless steel in order to guarantee that the finished product, ethanol, is not polluted. Model W still may use disassembled U type heating pipe. When maintenance, it can be removed out to the still. So it is very convenient to clean the outer wall of heating pipe and the inner wall of still.
In Model ZW, the indirect heating still is omitted. The condensor adapts calandria heat exchanger. Of course the screw plate heat exchange and coil pipe cooler can also be provided as request. When adapt coil pipe cooler, the buf fer tank.
APPLICATIONS
The device is suitable for recovering dilute ethanol of pharmaceutical industry, foodstuff industry, light industry, chemical industry and so on. It is also suitablefor distilling solvents such as methanol and so on. Using this device, about 300 of dilute ethanol can be distilled into 90 ′950 as request. If the nished product has higher requirement to alcohol content, the ratio of reex should be increased. But the output will be decreased.
CONSTITUTES OF DEVICE
Model W hasve specications. Each specication is equipped with distillation tower, still, condusator , buffer-tank, measurer of specic gravity. In which, distillation tower of Model W-200, W-300 is installed on the still directly and distillation tower of Model W-400, W-500, W-600 is installed with still separately.
Model ZW has two specications. Each specication is equipped with distillation tower, still, condusator , buffer-tank, measurer of specic gravity.
Other auxiliary equipment and meters and instruments such as measure tank's torage tank, pump, rotameter and temperature indicator should be prepared by customer . Our factory can also provide through additional process or order instead of customer as request.
APPLIC ATIONS
◎Concentration of raw material to be fed in: 30% ~80%;
◎Concentration of raw material to be taken out: 90% ~95%;
◎Ratio of reex: R=13 (af rmed in accordance with the concentration of raw material to be fed in and taken out);
◎Concentration of ethanol in residual liquid to be discharged:Model W ≤3%, Model ZW ≤1%;
◎Productive capacity (kg/h): see the list of productive capacity.
Model |
diameter of tower (mm) |
Porductive capacity if raw material to be fed is 30%~40% | Porductive capacity if raw material to be fed is 60%~80% | ||
90% | 95% | 90% | 95% | ||
W-200 | Φ200 | 35 | 26 | 45 | 36 |
W-300 | Φ300 | 80 | 61 | 100 | 80 |
W-400 | Φ400 | 150 | 120 | 180 | 140 |
W-500 | Φ500 | 230 | 185 | 275 | 220 |
W-600 | Φ600 | 335 | 270 | 400 | 320 |
ZW-200 | Φ200 | 95 | 60 | 110 | 80 |
ZW-300 | Φ300 | 200 | 120 | 240 | 165 |
