TJG Fixed Lifting Feeder
Key word：Fixed Lifting Feeder,Lifting Feeder,Feeder
Classification：Other equipment series
Product overview：Model TJG fixed material lifting and feeding machine consists of two parts,i.e. The lifting machine and base, the lifting machine is composed of the rack,hydraulic lifting system and the hoopper-turning mechanism. in operation…
Product Details
Photo gallery
Video highlights
DESCRIPTION
TJG Fixed Lifting Feeder consists of two parts, the lifting machine and base. The lifting machine is composed of the rack, hydraulic lifting system and the hopper-turning mechanism. The material tank and the hopper of the lifting machine shall be connected when before operation. And then start the control rod for lifting the hopper and the tank together. After starting the control rod for turning, the material tank will turn 180 degrees to a position with the bottom of the tank upward and the material can be easily fed into the required equipment.
Technical Parameter
| Model&specs\Parameter | H | A | D | H1 |
| TJG-50 | 2050 | 650 | Φ485 | 2900 |
| TJG-100 | 2050 | 750 | Φ590 | 2900 |
Technical Parameter
| Name | Volume (kg) |
Specification (dia×high) (mm) |
Wall Thichness (mm) |

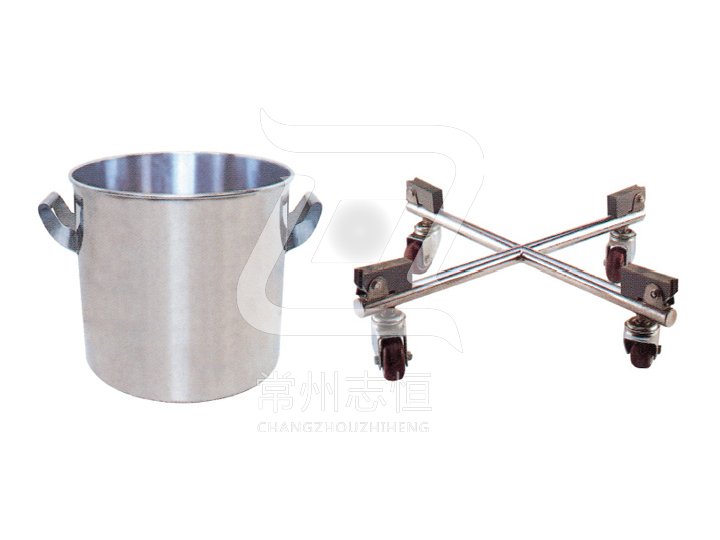

| Material tank | 50 | Φ485×460 | 0.8 |
| 100 | Φ590×550 | 0.8 | |
| Special trolley for material tank | 50-100 | Φ500×600 |
-
TJG Fixed Lifting Feeder -
TJG Fixed Lifting Feeder
