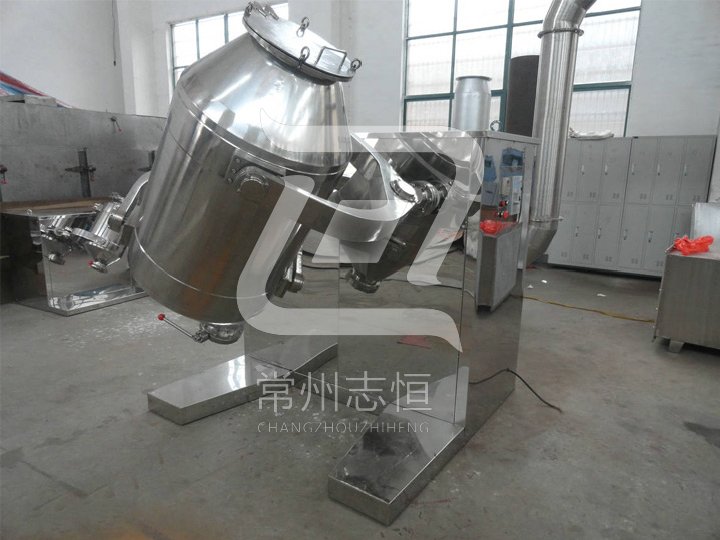

SYH 3D Motion Mixer

Key word:3D Motion Mixer,Motion Mixer,3D Mixer
Classification:Mixing equipment
Product overview:The barrel for charging the materials is driven by the driving shaft. The barrel body carries on the repeated level movement, rotation, turning and other complex movements so that the materials will carry out the three dimensions…
Product Details Photo gallery Video highlights

WORKING PRINCIPLE
The mixer body will parallel moving, rotating, and rolling with the driving of main shaft, and the materials will reacts 3D motions (circle, radial and axial direction) along the wall to realize the mutual flow, diffusion, accumulation and adulteration of multiple kinds of materials.

APPLICATION

1. The mixing barrel of the machine moves in multi-direction to avoid centrifugal force, specific gravity segregation and lamination. The mixing rate is up to 100% and it is the desired product in various mixers at present.
2. The maximum material loading rate can be up to 90 %( 50% for common mixers). It is a high efficiency and rapid mixing mixer.
3. The barrel uses the curve connection and fine polish treatment.
4. The machine is widely used for high uniformity mixing of powder and granule materials in the pharmaceutical, chemical, food, light-industry, electronic, mechanical, metallurgical, and nation defense industries, as well as for science and technology institutes.

Three-dimensional Motion Mixer


Technical Parameter

Spec SYH-5 SYH-15 SYH-50 SYH-100 SYH-200 SYH-400 SYH-600 SYH-800 SYH-1000 SYH-1200 SYH-1500 SYH-2000
Volume of barrel (L) 5 15 50 100 200 400 600 800 1000 1200 1500 2000
Charge volume (L) 4.5 13.5 45 90 180 360 540 720 900 1080 1350 1800
Charge weight (kg) 1.5-2.7 4-8.1 15-27 30-54 50-108 100-216 150-324 200-432 250-540 300-648 400-810 500-1080
Rotation speed of main shaft (r/min) 0-20 0-20 0-20 0-20 0-15 0-15 0-13 0-10 0-10 0-9 0-9 0-8
Motor power (kw) 0.25 0.37 1.1 1.5 2.5 4 5.5 7.5 11 11 15 18.5
L×W×H (mm) 600
×1000
×1000
800 ×1200
×1000
1150 ×1400
×1000
1250 ×1800
×1550
1450 ×2000
×1550
1650 ×2200
×1550
1850 ×2500
×1750
2100 ×2650
×2000
2150 ×2800
×2100
2000 ×3000
×2260
2300 ×3200
×2500
2500 ×3500
×2800
Weight (kg) 100 200 300 800 1200 1200 1500 1700 1800 2000 2400 3000

Notes: The material bulk specific gravity is calculated based on 0.6g / cm3; please indicate if the bulk specific gravity excess this figure before placing order.
