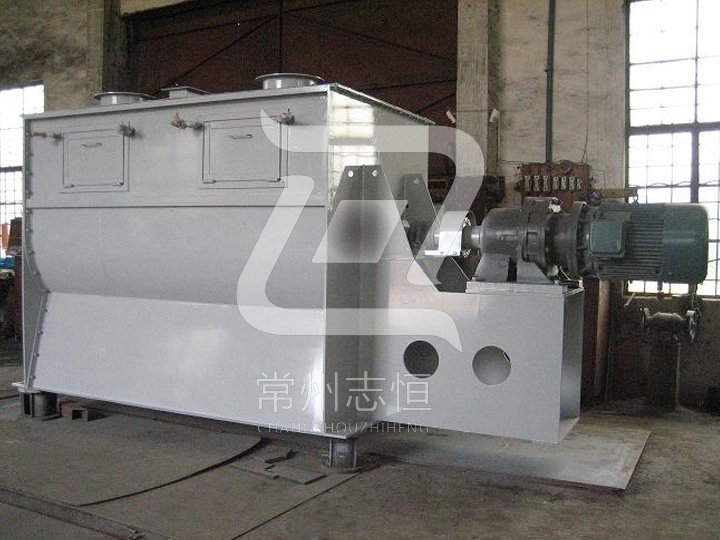

WLDH Horizontal Ribbon Mixer

Key word:Horizontal Ribbon Mixer,Ribbon Mixer
Classification:Mixing equipment
Product overview:This machine is composed of container,screw s tirring paddles and transitional parts; the screw paddle are generally made into 1 layer or 3 layers, the outer screw converge is the material to the centre from two sides…
Product Details Photo gallery Video highlights

WORKING PRINCIPLE
This machine consists of container, screw stirring paddles and transitional parts; the screw paddle usually has 2 or 3 layers, the outer screw will push the material from the sides to the center, and the inner screw will push the material from the center back to the sides, the convection mixing is form in this way.

FEATURES

1. Larger loading capacity and small occupied area.
2. It is difficult to clean when it is used to mix viscous or adhesive material.


APPLICATION
This mixer is mainly used in the mixing of viscous or adhesive powder material and powder material with liquid and paste added. Because it is difficult to clean for mixing viscous material, we recommend to use this machine for mixing large output production which doesn’t required to displacing variety material frequently.

Technical Parameter

Spec WLDH-0.1 WLDH-0.3 WLDH-0.5 WLDH-1 WLDH-1.5 WLDH-2 WLDH-3 WLDH-4 WLDH-6 WLDH-8 WLDH-10
Mixed amount/batch
(kg)
30-50 100-150 200-300 400-600 600-900 800-1200 1200-1800 1600-2400 2400-3600 3200-4800 4000-6000
Power (kg) 1.5-4 3-3.5 4-11 7.5-15 11-18.5 15-22 18.5-30 22-37 37-55 37-55 37-55
Weight (kg) 300 500 900 1400 1900 2500 3100 3600 5300 6800 7800

Notes: The material grade are carbon steel C and stainless P.
