Seaweed (coconut) drying production line
Key words:Seaweed (coconut) drying production line
Category:Food Industry
Case Overview:Project Overview:As a kind of algae growing in the sea, seaweed is a hidden flower plant in the plant world. Algae includes several different kinds of organisms that produce energy by photosynthesis. They are generally considered to be simple plants, …
Case details
Photo gallery
Project Overview:
As a kind of algae growing in the sea, seaweed is a hidden flower plant in the plant world. Algae includes several different kinds of organisms that produce energy by photosynthesis. They are generally considered to be simple plants, the main features are: no-dimensional tube bundle tissue, no true root, stem, leaf differentiation; no flowering, no fruit and seeds; reproductive organs without special protective tissue, often directly from a single The cells produce spores or gametes; and no embryo formation. Due to the simple structure of algae, some botanists attribute it to the "foliate flora" of lower plants. Seaweed is abundant in Southeast Asian countries such as Malaysia.

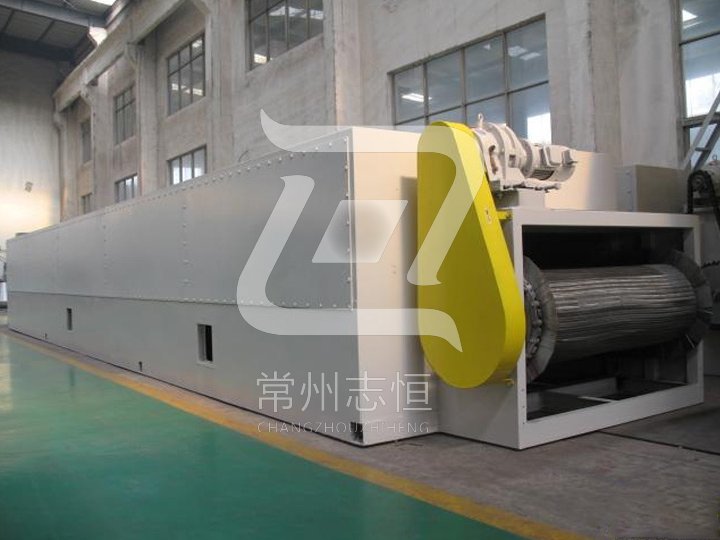

The production line can utilize high-end DW mesh belt dryer to achieve efficient drying of seaweed and coconut.
Work advantage:
The whole production line is fully enclosed (for materials), which consists of three parts: the swinging cloth section, the drying section and the discharging section. The swinging cloth section acts to uniformly disperse the seaweed on the stencil and transport it to the drying section at a constant speed. The seaweed is discharged through a hot air drying section of 80 ° C, a hot air drying section of 90 ° C and a hot air drying section of 120 ° C, and then discharged through the discharge section. The circulating wind direction and the circulation of the wind in each unit are downward, that is, the heated air is sucked by the induced draft fan, and after the fan outlet is first pre-distributed and then passed through the orifice, the hot air is directed from the bottom of the material (or from the material). The top down) penetrates the layer of material.
As a kind of algae growing in the sea, seaweed is a hidden flower plant in the plant world. Algae includes several different kinds of organisms that produce energy by photosynthesis. They are generally considered to be simple plants, the main features are: no-dimensional tube bundle tissue, no true root, stem, leaf differentiation; no flowering, no fruit and seeds; reproductive organs without special protective tissue, often directly from a single The cells produce spores or gametes; and no embryo formation. Due to the simple structure of algae, some botanists attribute it to the "foliate flora" of lower plants. Seaweed is abundant in Southeast Asian countries such as Malaysia.
The production line can utilize high-end DW mesh belt dryer to achieve efficient drying of seaweed and coconut.
Work advantage:
The whole production line is fully enclosed (for materials), which consists of three parts: the swinging cloth section, the drying section and the discharging section. The swinging cloth section acts to uniformly disperse the seaweed on the stencil and transport it to the drying section at a constant speed. The seaweed is discharged through a hot air drying section of 80 ° C, a hot air drying section of 90 ° C and a hot air drying section of 120 ° C, and then discharged through the discharge section. The circulating wind direction and the circulation of the wind in each unit are downward, that is, the heated air is sucked by the induced draft fan, and after the fan outlet is first pre-distributed and then passed through the orifice, the hot air is directed from the bottom of the material (or from the material). The top down) penetrates the layer of material.
